Volt Stick adds Solar PV Test Equipment and Solar Installation Test Meters to their range.
With the rising energy costs, sustainability and reducing carbon footprints - solar power has never been more relevant. In fact, solar Installations have risen by 45% in the last 3 years and by 80% in the last 12 months!
Our solar meter range offers help in solar panel installation by indicating the optimum angle for solar panels which will maximise their performance, and the Voltage Detector with a range of up to 1500vDC will easily be able to check their output.

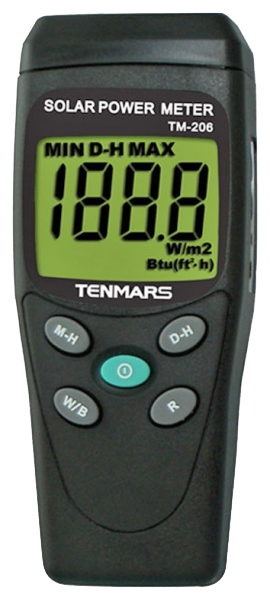

Solar Power MeterThe TM-206 Solar Power Meter measures solar radiation emitted from the sun in Watts per Square Meter or BTU and is ideal for Solar PV installations to set panels at optimal angles, for Meteorological and Agricultural applications, and to identify high performance windows. This instrument is EMC compliant and has undergone compatibility tests according to EN61326 (1997) + A1 (1998) + A2 (2001).
| TM-206 Specification | |
|---|---|
| Range | 2000 W/m2, 634BTU / (ft2xh) |
| Resolution | 0.1 W/m2, 0.1 BTU/ (ft2xh) |
| Accuracy |
Typically within ±10W/m2 [±3 BTU/ (ft2xh)] or ±5% whichever is greater in sunlight Temperature included error ±0.38 W/m2 / ºC [±0.12 BTU/ (ft2xh)] / ºC] deviation from 25 ºC |
| Angular Accuracy | Cosine Corrected |
| Operating Temperature | 0º ~ 50ºC below 80% RH |
| Display | 3½ Digits LCD Display |
| Dimensions | 130(H) x 56(W) x 39(D) mm |
| Weight (Net) | 150g |
.png)

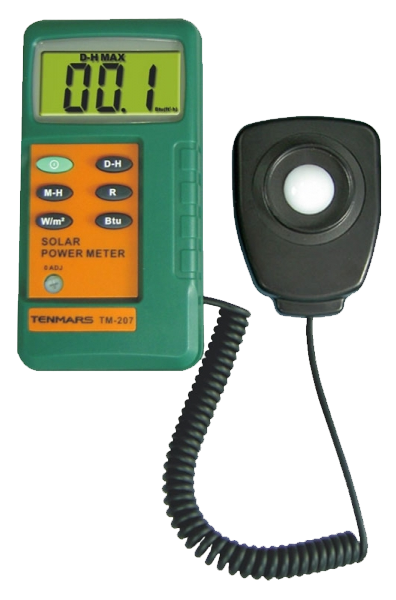

Solar Power MeterThe TM-207 Solar Power Meter measures solar radiation emitted from the sun in Watts per Square Meter or BTU with a flexible sensor and is ideal for solar PV installations to set panels at optimal angles, for Meteorological and Agricultural applications and to identify high performance windows.
This instrument is EMC-compliant and has undergone compatibility tests according to EN61326 (1997) + A1 (1998) + A2 (2001).
| TM-207 Specification | |
|---|---|
| Range | 2000 W/m2, 634BTU / (ft2xh) |
| Resolution | 0.1 W/m2, 0.1 BTU/ (ft2xh) |
| Accuracy |
Typically within ±10W/m2 [±3 BTU/ (ft2xh)] or ±5% whichever is greater in sunlight Temperature included error ±0.38 W/m2 / ºC [±0.12 BTU/ (ft2xh)] / ºC] deviation from 25ºC |
| Angular Accuracy | Cosine Corrected |
| Operating Temperature | 0º ~ 50ºC below 80% RH |
| Display | 3½ Digits LCD Display |
| Dimensions | 130(H) x 56(W) x 39(D) mm |
| Weight (Net) | 150g |

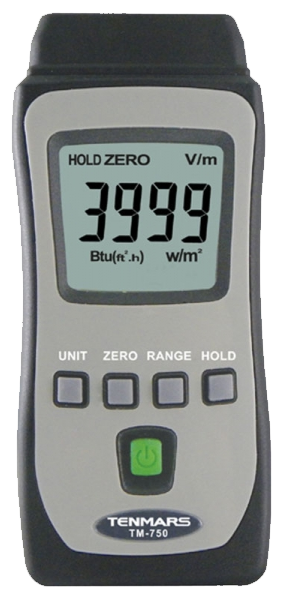

Mini Solar Power Meter
The TM-750 Solar Power Meter is a very handy compact tool that measures solar radiation emitted from the sun in Watts per Square Meter or BTU and is ideal for solar PV installations to set panels at optimal angles, for Meteorological & Agricultural applications and to
identify high performance windows.
This instrument is EMC-compliant and has undergone compatibility tests according to EN61326 (1997) + A1 (1998) + A2 (2001).
| TM-750 Specification | |
|---|---|
| Range | 2000 W/m2, 634BTU / (ft2xh) |
| Resolution | 0.1 W/m2, 0.1 BTU/ (ft2xh) |
| Accuracy |
Typically within ±10W/m2 [±3 BTU/ (ft2xh)] or ±5% whichever is greater in sunlight Temperature included error ±0.38 W/m2 / ºC [±0.12 BTU/ (ft2xh)] / ºC] deviation from 25 ºC |
| Angular Accuracy | Cosine Corrected |
| Operating Temperature | 0º ~ 50ºC below 80% RH |
| Display | 3½ Digits LCD Display |
| Dimensions | 130(H) x 56(W) x 39(D) mm |
| Weight (Net) | 150g |
Voltage, Continuity & RCD TesterThe Elma 2200X Measures up to 1500vDC perfect for Solar Panels and EV Charging points.
The Elma 2200X is a very clever re-invention of the voltage tester with a quality, rugged construction. The Elma 2200X can load the point of measurement to discharge induced ghost voltages and provides a load of 30mA at 230v for a simple RCD test.
| Elma 2200X Specification | |
|---|---|
| AC Voltage Range | 6...1000V |
| AC Voltage resolution | 1V |
| Auto power off | 30 S |
| Enclosure class | IP64 |
| Battery | 2 x 1.5V LR03 |
| DC Voltage accuracy | 1V |
| DC Voltage range | 6...1500V |
| Dimensions | 246 (H) x 64 (W) x 29 (D) mm |
| Weight | 150g |
