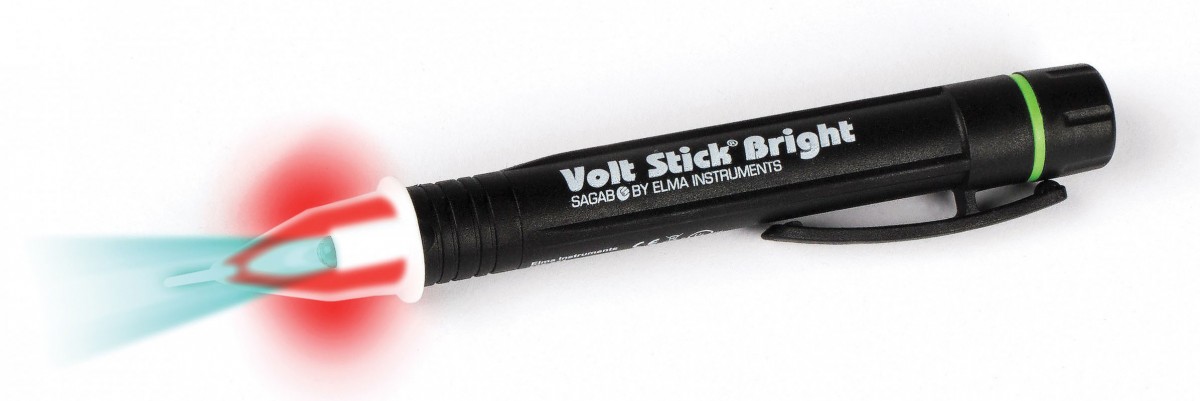

Volt Stick Bright

Integrated LED flashlight and dual switchable sensitivity settings (standard 230v range and high sensitivity 20v range).

Volt Stick Bright applications

Volt Stick Bright is our most accurate, innovative and feature-full product we've ever developed!.

We've taken the best of our original 230v voltage checkers and made this instant tester even more accurate, more user-friendly and with unique functionality never previously seen in a Volt Stick.

As you'd expect, you still get instant, safe, non-contact checking for the presence of an AC voltage - ideal for testing 'live / not live' cables, wires, electrical sockets, switched and fuses, etc.

But this latest version of the world's number 1 voltage checker now also features a number of new innovations including two interchangeable sensitivity settings (switchable by the user between standard 230v range & high sensitivity 20v range), built-in bright LED flashlight, more powerful LED & Sound indicators and digital microprocessor for higher accuracy and on-board function testing.

We’re confident in suggesting that not only is Volt Stick Bright the best version we’ve ever developed, but it is almost certainly the best non-contact voltage tester available on today’s market!

Download Volt Stick 110 Spec SheetDownload Volt Stick BrochureHow to use Volt Stick BRIGHT videoVolt Stick store locator


New innovations / new features of the Volt Stick Bright:

Dual sensitivity ranges:

  • The Volt Stick Bright features dual sensitivity test ranges; a standard 230v range that is always active and a second, high sensitivity 20v range. The high sensitivity range is instantly activated simply by pressing the test button for approx. 2 seconds.

Always active:

  • This professional voltage detector is ‘always active’ - so there's no ON / OFF switch and no danger of  assuming the Volt Stick is working when it may be mistakenly switched off.
    When the Volt Stick Bright is not in use it will stand in ‘sleep mode’ using almost no battery power – but will be immediately active when used. This is a vital safety feature, since many voltage testers on the market have to be manually switched on before use.

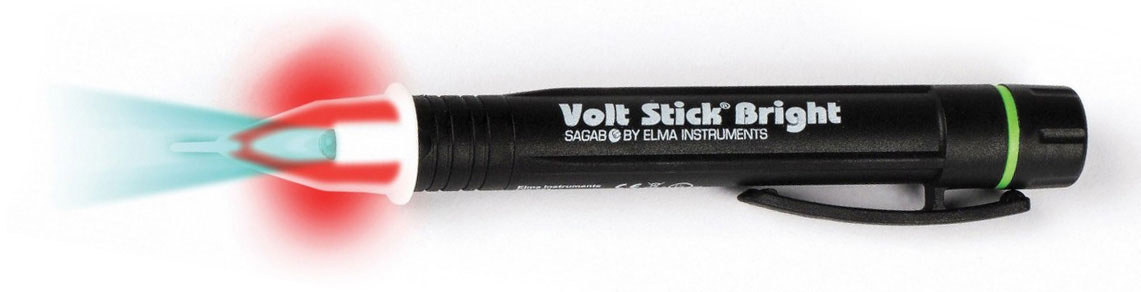

Volt Stick Bright with built-in flashlightIntegrated Flash Light:

  • Our Volt Stick Bright features a bright, white LED flashlight integrated into the tip of the device.
    Unlike many alternative products on the market which have a flashlight on the ‘rear’ end, the Volt Stick Bright's flashlight position ensures it points in the direction of the area to be tested (which makes sense!)

On-board Battery Check function:

  • Its microprocessor will test the Volt Stick Bright’s batteries each and every time it is used, without delay in voltage checking / functionality.

On-board Full-Function Testing:

  • The microprocessor will also test all functions of the device, every time the test button is pressed. It will run a full test of antenna, electronics, LED and battery life. The high performance microprocessor will perform all tests in nanoseconds, without any delay in voltage checking / functionality.

Universal Flat Tip:

  • Volt Stick Bright features universal flat testing tip, designed to fit most electrical sockets around the world, including UK, Australia, Japan, USA, Germany and more.

Sound Indicator:

  • Also features a clear, loud sound indicator to provide both visual and audible indication when detecting voltage.

New Battery Compartment:

  • The Voltstick Bright features a newly designed battery compartment which makes access and battery change much easier whilst protecting internal circuits from damage.

Volt Stick Bright with dual sensitivity and built-in flashlight


Features:

  • Non-contact voltage testing
  • Locates breaks in cables and detects blown fuses
  • Distinguishes between live and neutral wires
  • 2 x sensitivity ranges - standard 230v and high sensitivity 20v
  • Integrated bright white LED flashlight (forward facing, unlike many inferior competing products!)
  • Always active - always in test mode (no need to switch device on and off)
  • On-board microprocessor for high accuracy testing
  • Internal battery & function testing
  • Universal flat tip fits most electrical sockets worldwide
  • More powerful LED & improved Sounder indicators
  • Long battery life - 1 to 2 years
  • UL, UKCA and CE approved

Applications:

  • Dual sensitivity -  low & mains voltage
  • Find breaks in cables
  • Polarity checking
  • Built-in torch for testing in dark areas
  • Ideal for low voltage AC LED testing
Attribute Value
Voltage range 1 200 ~ 1000v AC
Sensitivity range 1 Approx. 4 mm from a cable @ 230v AC 50Hz
Voltage range 2 20 ~ 1000v AC
Sensitivity range 2 Approx. 20 mm from a cable @ 230v AC 50Hz
Frequency range 45 ~ 65 Hz
Humidity 80% at 30°C, 50% at 40°C RH
Temperature -10 ~ +50°C
Overvoltage category CAT IV 600V / CAT III 1000V
Polution Degree 2
Battery 2 x AAA batteries (included)
Dimensions 153(L) x 20 (Ø) mm
Weight (Net) 0.04kg

Volt Stick instant voltage tester
