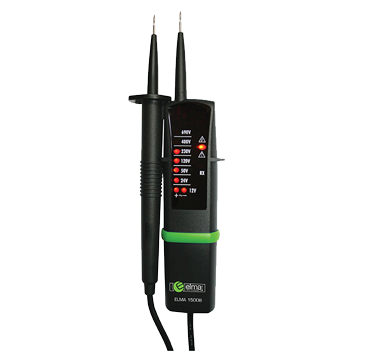

Elma 1500B - voltage and continuity tester

Voltage and continuity tester.

The Elma 1500B is a compact, easy to use, combined Test Instrument for voltage, analysis and phase indication.

The unit features no controls or buttons, switching automatically between the different functions ensuring no user/reading errors.

The Elma 1500B uses standard AAA batteries and, as an added safety feature, will operate the voltage test function without batteries!

Download Volt Stick SOUND Spec SheetDownload Volt Stick Brochure


IEC 61010-1 CAT IV 300V and CAT III 690V and EN 61243-3.

Elma 1500BFeatures:

  • DC and AC voltage measurement up to 690V
  • Continuity test with optical and acoustical signal up to 200 kOhm
  • Single-pole phase test
  • Internal basic load (also for tripping the RCD)
  • Automatic AC/DC detection
  • Bright LED indication
  • Ergonomic and robust design & construction
  • Probe-tip protection
  • Measuring Category CAT III/690V
  • Constructed in compliance with DIN EN 61243-3, DIN VDE 0682 Part 401(previously DIN VDE 0680 Part 5), IEC61010
