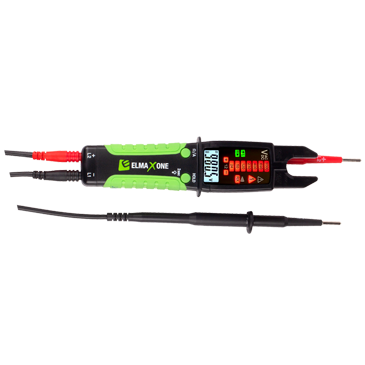

Elma X ONE RMS multi and voltage tester

True RMS multi and voltage tester - with open current clamps

The Elma X ONE is a smart true RMS multi tester which combines professional voltage tester with open current clamps.

This slim design RMS multi tester is suitable for work with the power on.

The Elma X One comes with batteries, test leads, manual and bag that fits to a belt.



Download Volt Stick SOUND Spec SheetDownload Volt Stick Brochure


Approvals:.

IEC 61010-1 Cat IV 600V / IEC 61243-3:2014


Elma X One MultitesterFeatures:

  • Voltage test, 2 pole with LEDs 12...1.000V AC/DC
  • True RMS voltage measurement with display 7...1.000V AC/DC
  • True RMS current measurement with very slim cucrrent clamps 0-200A
  • Resistance measurement 0-50kΩ and continuity test
  • Voltage test, 1 pole, indicating phase
  • Phase rotation test, 2 pole
  • Large clear illuminated display and bright LEDs
  • Self-test and auto on/off function
  • True voltagetest also without batteries - suitable for work with the power on
  • Meets the voltage tester directive for working with the power off
  • Very powerfull interchangeable test leads with 4mm standard plug
  • Interchangeable test leads tips 2/4mm
  • Built-in powerful flashlight
  • Comes with handy bag for the belt
Attribute Value
Voltage indication LED: 12, 24, 50, 120, 230, 400, 690 & 1000V AC/DC
Digital display LCD: 7,0–1000V AC/DC
Test current: < 3,5mA
Current: 0-200.0A AC
Voltage detector (1 pole): 90-1000V AC
Resistance: 0-50kΩ
Phase roration: 2 pole, 90-1000V 45-65Hz
Working temperature: -15…55°C
Safety: IEC 61010-1 CAT IV 600V / CAT III 1000V. IEC 61243-3:2014
Protection class : IP65
Display: 9999
Clamp opening: 16mm
Battery: 2x1,5V LR03 (inkl.)
Dimensions: 220x57x35 mm
Weight: 220 g
